Panel Mount Female Feed Through Rca Jack

The FT series of true, feed through, data connectors for electrical instrumentation are perfect for developing custom I/O configurations for wall plates, rack panels, etc.

All fit within a standard XLR panel cutout and use common cabling for front and back connections. No soldering and no punch terminations - just use the standard cable for that particular connector style. Mount from the front or back. A low rear profile accommodates the tightest behind-the-panel spaces.

Available in a wide variety of styles. Functionality is affected by cable quality, length and cable wiring configuration.

Please see the PDF data sheet for technical specifications.

HDMI A to HDMI A, vertical mounting, black plastic frame, gold plated shell and contacts.

There is also a right-angled version.

• CP30200G Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30200GX Black plastic with 2.5 mm diameter plain mounting holes.

HDMI A to HDMI A, vertical mounting, white plastic frame, gold plated shell and contacts.

• CP30200GW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30200GWX White plastic with 2.5 mm diameter plain mounting holes.

USB Type-C female to USB Type-C female, vertical mounting, black plastic frame.

Not compatible with power delivery (PD) charging.

• CP30201 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30201X Black plastic with 2.5 mm diameter plain mounting holes.

USB Type-C female to USB Type-C female, vertical mounting, white plastic frame.

Not compatible with power delivery (PD) charging.

• CP30201W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30201XW White plastic with 2.5 mm diameter plain mounting holes.

Mini DisplayPort, horizontal mounting, black plastic frame, nickel plated shell, gold plated contacts.

• CP30202 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30202X Black plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 B to USB 2.0 B, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30203N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30203NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 3.0 B to USB 3.0 B, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30204N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30204NX Black plastic with 2.5 mm diameter plain mounting holes.

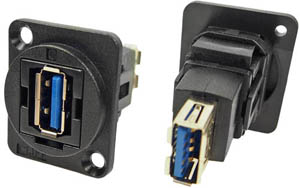

USB 3.0 A to USB 3.0 A, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30205N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30205NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 3.0 A to USB 3.0 A, vertical mounting, white plastic frame, nickel plated steel shell, gold plated contacts.

• CP30205NW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30205NWX White plastic with 2.5 mm diameter plain mounting holes.

USB 3.0 B to USB 3.0 A, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30206N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30206NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 B to USB 2.0 A, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30207N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30207NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 B to USB 2.0 A, vertical mounting, white plastic frame, nickel plated steel shell, gold plated contacts.

• CP30207NW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30207NWX White plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 A to USB 2.0 A, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30208N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30208NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 A to USB 2.0 A, vertical mounting, white plastic frame, nickel plated steel shell, gold plated contacts.

• CP30208NW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30208NXW White plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 A to USB 2.0 B, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30209N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30209NX Black plastic with 2.5 mm diameter plain mounting holes.

USB 2.0 A to USB 2.0 B, vertical mounting, white plastic, nickel plated steel shell, gold plated contacts.

• CP30209NW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30209NWX White plastic with 2.5 mm diameter plain mounting holes.

USB 3.0 A to USB 3.0 B, vertical mounting, black plastic frame, nickel plated steel shell, gold plated contacts.

• CP30210N Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30210NX Black plastic with 2.5 mm diameter plain mounting holes.

USB Type-C female to USB Type-C male, horizontal mounting, black plastic frame, nickel plated connector.

USB-C extension cables available.

• CP30211 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30211X Black plastic with 2.5 mm diameter plain mounting holes.

USB Type-C female to USB Type-C male, horizontal mounting, white plastic frame, nickel plated connector.

USB-C extension cables available.

• CP30211W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30211XW White plastic with 2.5 mm diameter plain mounting holes.

Dual USB Type-C female to USB Type-C male, horizontal mounting, black plastic frame, nickel plated connector.

USB-C extension cables available.

• CP30212 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30212X Black plastic with 2.5 mm diameter plain mounting holes.

Dual USB Type-C female to USB Type-C male, white plastic frame, nickel plated connector.

USB-C extension cables available.

• CP30212W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30212XW White plastic with 2.5 mm diameter plain mounting holes.

LC Duplex SM optical fibre, fiber, black plastic frame, integral dust cover, ceramic sleeve.

Fibre Fiber optic connector cleaner pen tool available.

• CP30213 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30213X Black plastic with 2.5 mm diameter plain mounting holes.

LC Duplex MM optical fibre, fiber, black plastic frame, integral dust cover, ceramic sleeve.

Fibre Fiber optic connector cleaner pen tool available.

• CP30214 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30214X Black plastic with 2.5 mm diameter plain mounting holes.

SC Simplex SM optical fibre, fiber, black plastic frame, integral dust cover, ceramic sleeve.

Fibre Fiber optic connector cleaner pen tool available.

• CP30215 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30215X Black plastic with 2.5 mm diameter plain mounting holes.

SC Simplex MM optical fibre, fiber, black plastic frame, integral dust cover, ceramic sleeve.

Fibre Fiber optic connector cleaner pen tool available.

• CP30216 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30216X Black plastic with 2.5 mm diameter plain mounting holes.

TOSLINK EIAJ optical fibre, fiber, black plastic frame, integral dust cover.

Fibre Fiber optic connector cleaner pen tool available.

• CP30217 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30217X Black plastic with 2.5 mm diameter plain mounting holes.

ST / BFOC optical fibre, fiber, black plastic frame, integral dust cover, nickel plated contacts.

Fibre Fiber optic connector cleaner pen tool available.

• CP30218 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30218X Black plastic with 2.5 mm diameter plain mounting holes.

FC optical fibre, fiber, black plastic frame, integral dust cover, nickel plated contacts.

With a slot width and stock measure of 2.2 mm this should be suitable for either FC/PC or FC/APC (wide type N or narrow type R) standards for key widths.

Fibre Fiber optic connector cleaner pen tool available.

• CP30219 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30219X Black plastic with 2.5 mm diameter plain mounting holes.

FTP Cat.5e RJ45 (8P8C), shielded, black plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN 50173, ANSI / TIA / EIA 568B.2.

• CP30220S Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30220SX Black plastic with 2.5 mm diameter plain mounting holes.

FTP Cat.5e RJ45 (8P8C), shielded, white plastic frame. T568A & T568B wiring. ISO / IEC 11801, EN 50173, ANSI / TIA / EIA 568B.2.

• CP30220SW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30220SWX White plastic with 2.5 mm diameter plain mounting holes.

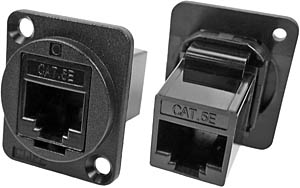

UTP Cat.5e RJ45 (8P8C), unshielded, black plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN 50173, ANSI / TIA / EIA 568B.2.

There is also a right-angled version.

• CP30220 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30220X Black plastic with 2.5 mm diameter plain mounting holes.

UTP Cat.5e RJ45 (8P8C), unshielded, white plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN 50173, ANSI / TIA / EIA 568B.2.

• CP30220W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30220XW White plastic with 2.5 mm diameter plain mounting holes.

FTP Cat.6 RJ45 (8P8C), shielded, black plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.

• CP30222S Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30222SX Black plastic with 2.5 mm diameter plain mounting holes.

FTP Cat.6 RJ45 (8P8C), shielded, white plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.

• CP30222SW White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30222SWX White plastic with 2.5 mm diameter plain mounting holes.

UTP Cat.6 RJ45 (8P8C), unshielded, black plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.

There is also a right-angled version.

• CP30222 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30222X Black plastic with 2.5 mm diameter plain mounting holes.

UTP Cat.6 RJ45 (8P8C), unshielded, white plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.

• CP30222W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30222WX White plastic with 2.5 mm diameter plain mounting holes.

FTP Cat.6a RJ45 (8P8C), shielded, black plastic frame. T568A and T568B wiring. ISO / IEC 11801, EN50173, ANSI / TIA / EIA 568B.2.

• CP30225S Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30225SX Black plastic with 2.5 mm diameter plain mounting holes.

Cat.6 RJ45 (8P8C), IDC , black plastic frame. The rear connectors are IDCs rather than a feedthrough.

• CP30227 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30227X Black plastic with 2.5 mm diameter plain mounting holes.

Cat.3 RJ11 / RJ14 (6P4C), black plastic frame. Gold over nickel plated contacts.

• CP30223 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30223X Black plastic with 2.5 mm diameter plain mounting holes.

Cat.3 RJ12 (6P6C), black plastic frame. Gold over nickel plated contacts.

• CP30224 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30224X Black plastic with 2.5 mm diameter plain mounting holes.

4P4C 7.8 mm, (RJ9/10/22), black plastic frame. Gold over nickel plated contacts.

• CP30228 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30228X Black plastic with 2.5 mm diameter plain mounting holes.

4P4C 7.8 mm, (RJ9/10/22), black plastic frame. Gold over nickel plated contacts.

• CP30228W White plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30228XW White plastic with 2.5 mm diameter plain mounting holes.

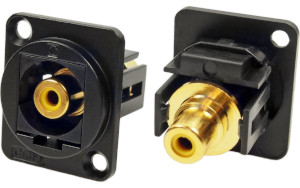

RCA Phono Phono / Cinch with red insert. Black plastic frame, gold over nickel plated contacts. Other insert colours colors are available on request.

• CP30230 Black plastic with red insert and 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30230X Black plastic with red insert and 2.5 mm diameter plain mounting holes.

RCA Phono Phono / Cinch with white insert . Black plastic frame, gold over nickel plated contacts. Other insert colours colors are available on request.

• CP30231 Black plastic with white insert and 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30231X Black plastic with white insert and 2.5 mm diameter plain mounting holes.

RCA Phono Phono / Cinch with yellow insert. Black plastic frame, gold over nickel plated contacts. Other insert colours colors are available on request.

• CP30232 Black plastic with yellow insert and 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30232X Black plastic with yellow insert and 2.5 mm diameter plain mounting holes.

Two wire terminal, black plastic frame. Low voltage use only. Maximum rating 25V AC, 60 V DC, 10A.

• CP30240 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30240X Black plastic with 2.5 mm diameter plain mounting holes.

BNC 50 Ohm, black plastic frame.

• CP303090 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP303090X Black plastic with 2.5 mm diameter plain mounting holes.

BNC 75 Ohm, black plastic frame.

• CP303095 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP303095X Black plastic with 2.5 mm diameter plain mounting holes.

BNC 75 Ohm, 12 GHz , black plastic frame, gold plated.

• CP303112G Black plastic, gold plated with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP303112GX Black plastic, gold plated with 2.5 mm diameter plain mounting holes.

XLR panel blanking plate, black plastic frame.

• CP30241 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30241X Black plastic with 2.5 mm diameter plain mounting holes.

XRP3 3 mm deep, black plastic recess plate for custom mounting options. Drill or punch guide.

• CP30300 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30300X Black plastic with 2.5 mm diameter plain mounting holes.

XRP12 12 mm deep, black plastic recess plate for custom mounting options. Drill or punch guide.

• CP30400 Black plastic with 3.5 mm diameter countersunk mounting holes (82 ° × ⌀5.85 mm).
• CP30400X Black plastic with 2.5 mm diameter plain mounting holes.

Sealing Gaskets.

These rubber gaskets with bevelled edges are used as dust seals and for colour color identification.

• CP299802 Black with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP299805 Green with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP299807 Red with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP299808 Blue with cap. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP299902 Black.
• CP299903 White.
• CP299904 Grey. Gray.
• CP299905 Green.
• CP299906 Yellow.
• CP299907 Red.
• CP299908 Blue.

Dust Covers.

Our universal dust cover fits over the front of most feedthrough connectors, (not ST or FC fibre-optic). fiber-optic).

Dedicated covers simply push into the front of the connector to reduce the ingress of dust and dirt.

Designed to fit both plastic and metal Cliff ™ feedthrough connectors.

• CP30285 Black universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP30285L Blue universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP30285R Red universal dust cover. Not suitable for ST or FC fibre-optic fiber-optic feedthrough connectors.
• CP30290 Lanyard for dedicated dust covers.
• CP30291 RJ45.
• CP30292 USB2-A / USB3-A.
• CP30293 USB2-B.
• CP30294 HDMI.
• CP30295 USB-C.
• CP30296 USB3-B.

Fibre Fiber Optic Cleaners.

Push click action and robust sturdy construction, the pens have a dry cleaning strand that gently sweeps and removes harmful contaminants from the connector without damaging the end face.

• FCR300125 Fibre Fiber optic cleaning pen 1.25 mm for MU and LC connectors.
• FCR300250 Fibre Fiber optic cleaning pen 2.5 mm for FC, SC and ST connectors.

Our site uses PDF (portable document format) files to store information on our products. To view these files you should have a PDF reader installed. You can download Adobe Reader for free.

heidellifforess.blogspot.com

Source: https://www.cliffuk.co.uk/products/feedthrough/plastic/index.htm

Share this post
